每日海域態勢報告Daily Maritime Situation Report

Name: Taiwan Gray Zone Maritime Daily Report Data — 2026-09-22
Published: 2026-09-22
License: https://opensource.org/licenses/MIT

📅 2026-09-22 · 資料更新data updated 2026-09-22T16:15:19Z

今日重點Today at a Glance

6,700

AIS 船舶AIS vessels

14,745

暗船 (SAR)Dark vessels

1,624

可疑船隻Suspicious

693

極高風險Critical

644

緊貼海纜Near cable

294

可疑旁靠Suspicious STS

暗船比對成效Dark-vessel verification

14,745

SAR 暗偵測SAR dark detections

2,203

固定設施剔除Infra filtered

922

本地 AIS 對上Re-matched

11,620

殘餘暗船Residual dark

21.2%

假暗船剔除率False-dark removed

AIS 覆蓋外Outside coverage

2203

11620

■ 固定設施Infrastructure 2,203 · ■ 本地對上Re-matched 922 · ■ 殘餘暗船Residual 11,620

GFW 判定為「未匹配 AIS」的 14,745 筆 SAR 偵測，先剔除 2,203 筆風機／平台等固定設施，再以港務局本地 AIS（21,589 艘、推算至 Sentinel-1 過境時刻）重新比對，對上 922 筆假暗船（覆蓋範圍內重比對率 7.4%），剩下 11,620 筆為殘餘暗船；其中 0 筆落在本地 AIS 保留期之外，無法驗證。Of 14,745 SAR detections GFW flagged as AIS-unmatched, 2,203 were removed as fixed infrastructure (wind farms / platforms), then re-matched against local Port Bureau AIS (21,589 vessels, dead-reckoned to the Sentinel-1 overpass instant): 922 turned out to be false dark ships (7.4% re-match rate within coverage), leaving 11,620 residual dark detections — of which 0 fall outside local AIS retention and cannot be verified.

SAR 取證影像SAR chip forensics

最新取證批次 2026-09-22：10 筆 · 累積 274 筆 · 確認率 10.6%Latest run 2026-09-22: 10 targets · 274 cumulative · 10.6% confirmed · ✅ 29 · 🟡 58 · ⚠️ 1 · ⚪ 186 · 本輪取證報告Run report

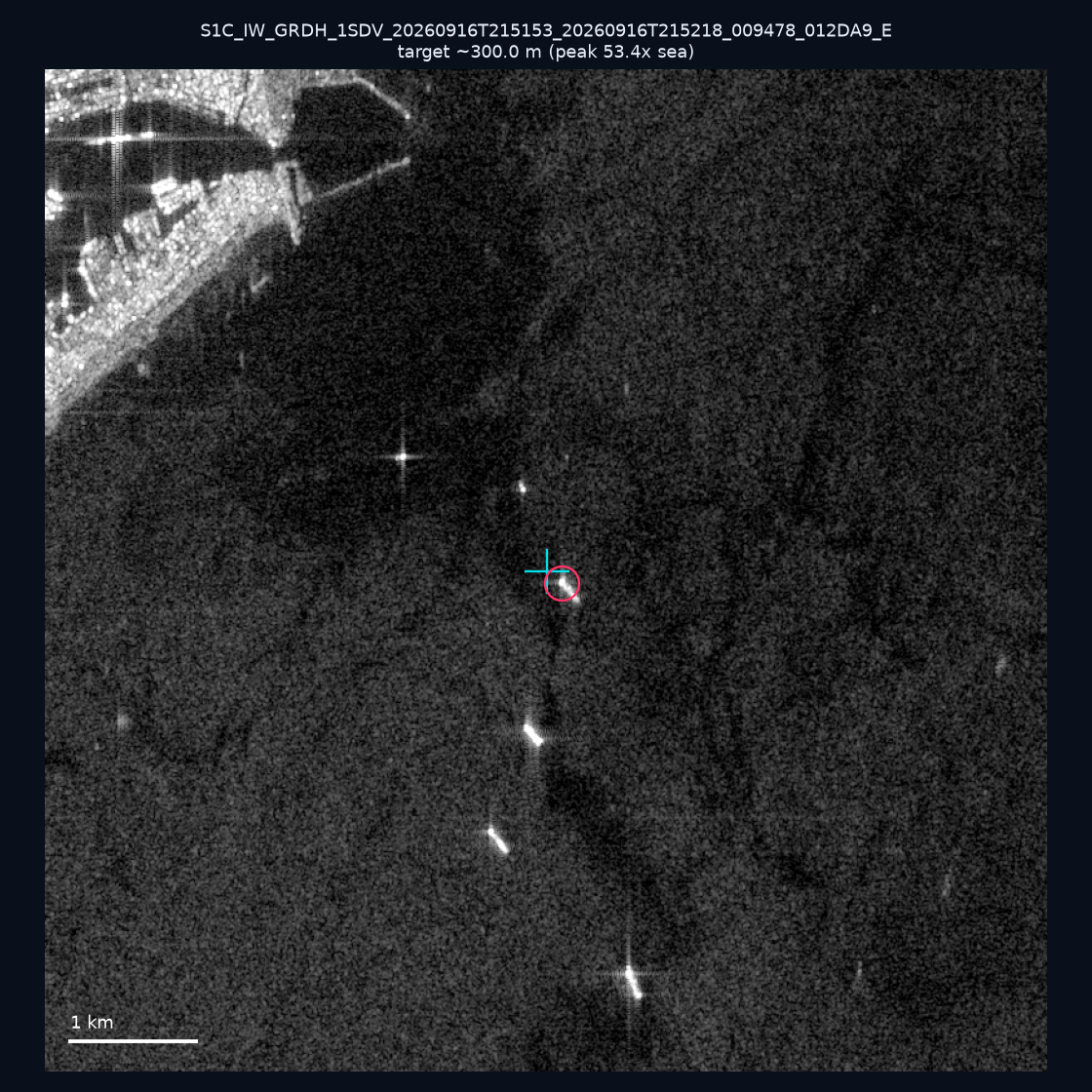

SAR chip 22.59, 120.24 — ✅ 確認實體目標Confirmed target
📅 2026-09-16 · 📍 22.59, 120.24 · 🛰️ 21:51 UTC · internal_waters
~300.0 m · 53.4× (182 px)

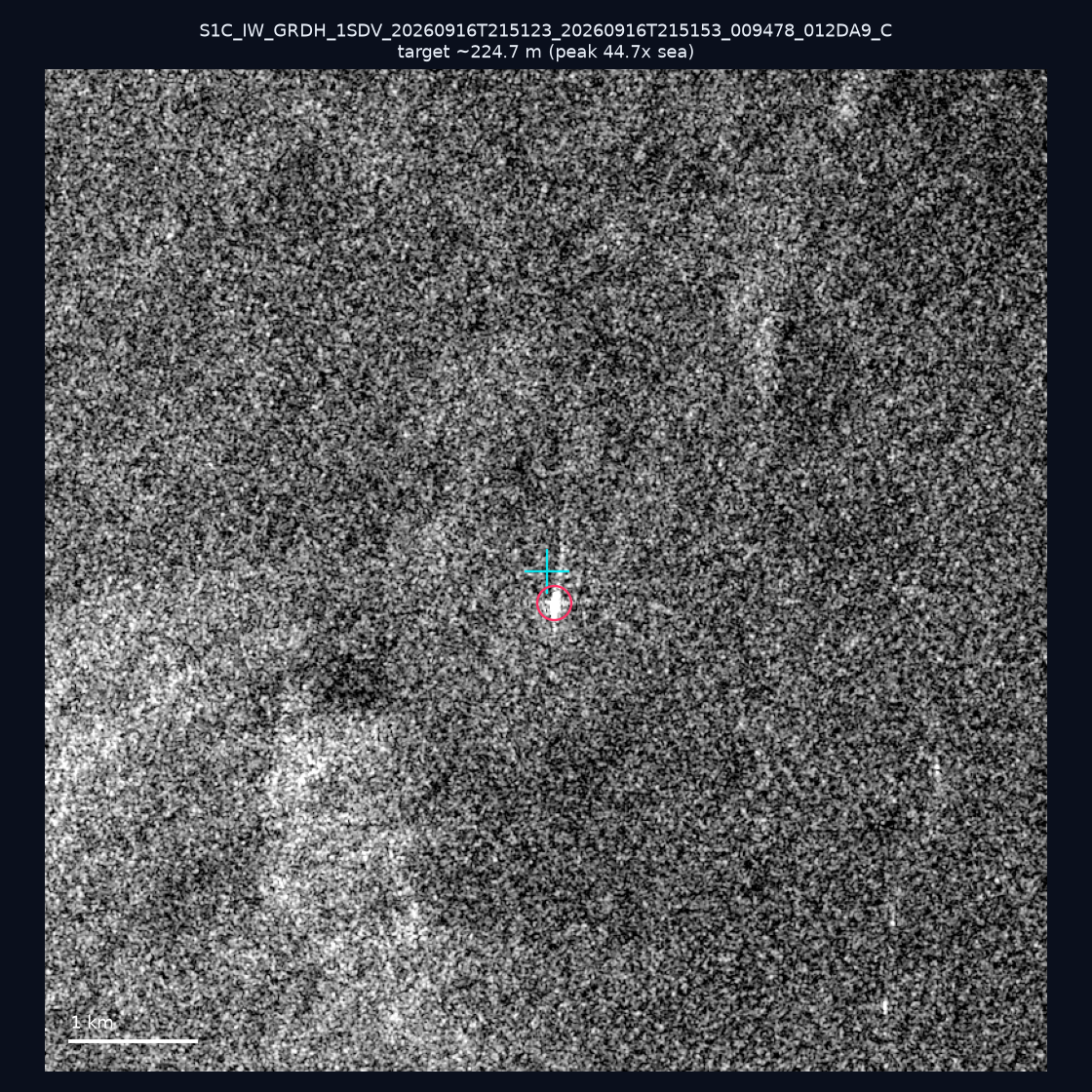

SAR chip 24.86, 122.07 — ✅ 確認實體目標Confirmed target
📅 2026-09-16 · 📍 24.86, 122.07 · 🛰️ 21:51 UTC · territorial_sea
~224.7 m · 44.7× (107 px)

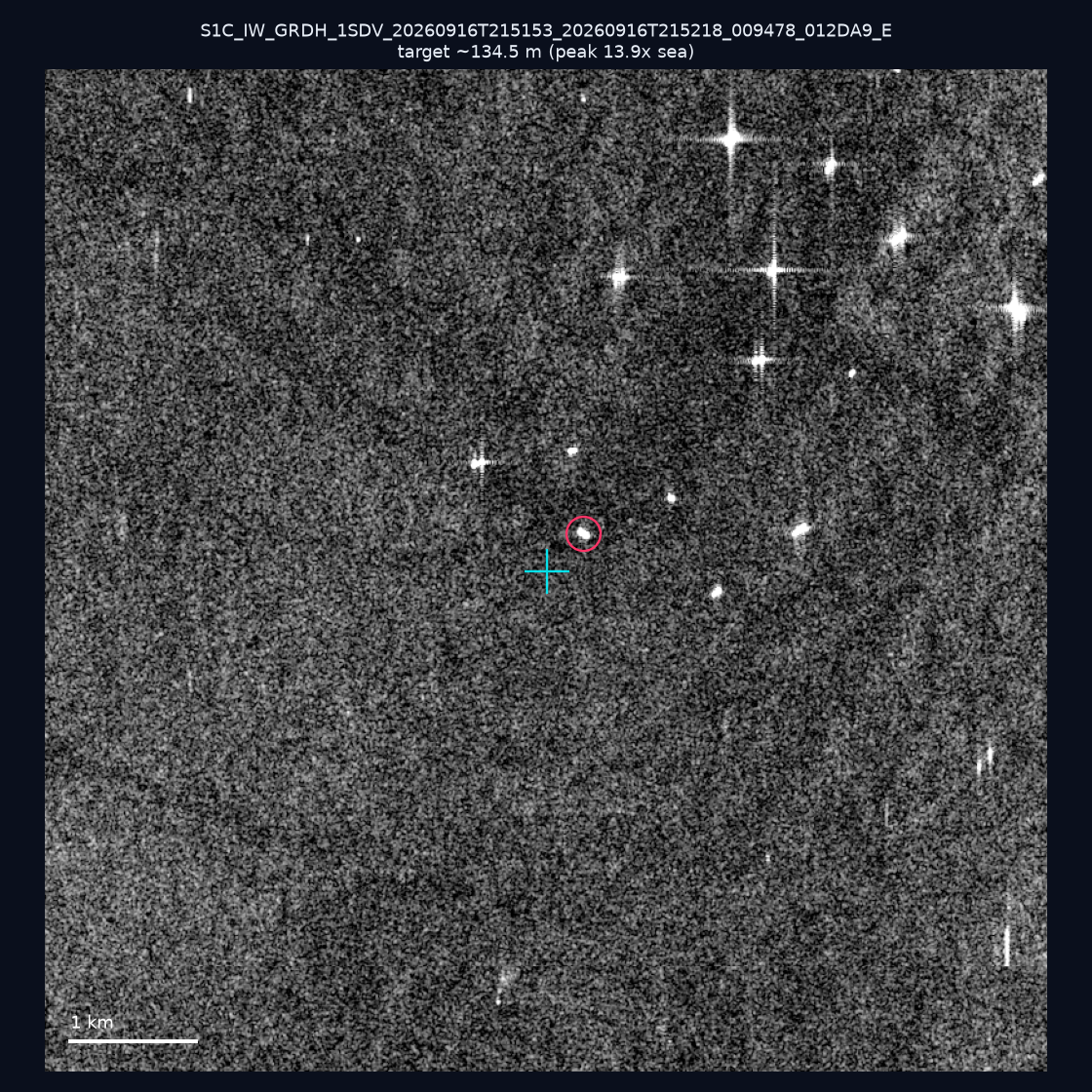

SAR chip 22.68, 120.19 — ✅ 確認實體目標Confirmed target
📅 2026-09-16 · 📍 22.68, 120.19 · 🛰️ 21:51 UTC · internal_waters
~134.5 m · 13.9× (55 px)

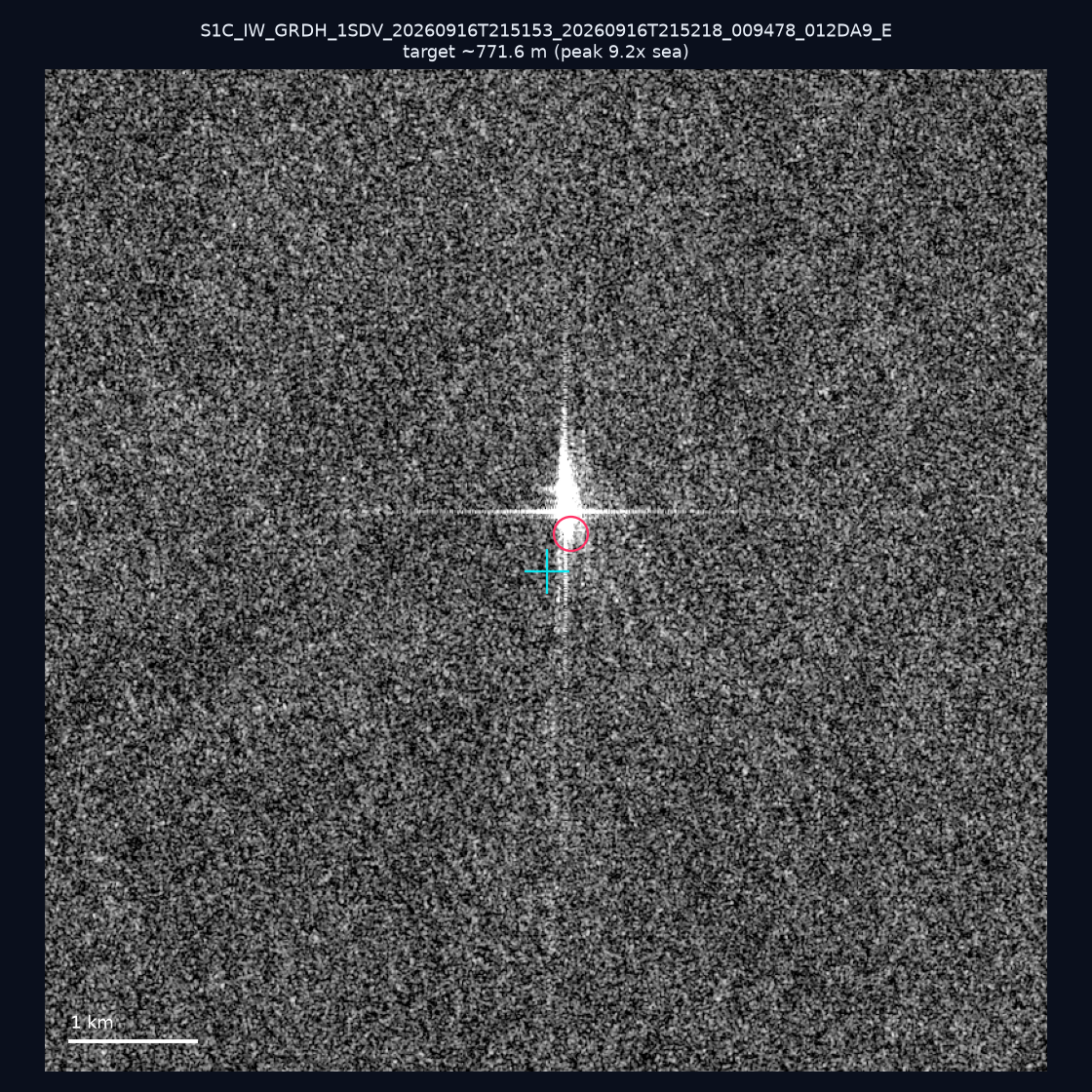

SAR chip 22.61, 119.51 — 🟡 弱目標Weak target
📅 2026-09-16 · 📍 22.61, 119.51 · 🛰️ 21:51 UTC · contiguous_zone
~771.6 m · 9.2× (794 px)

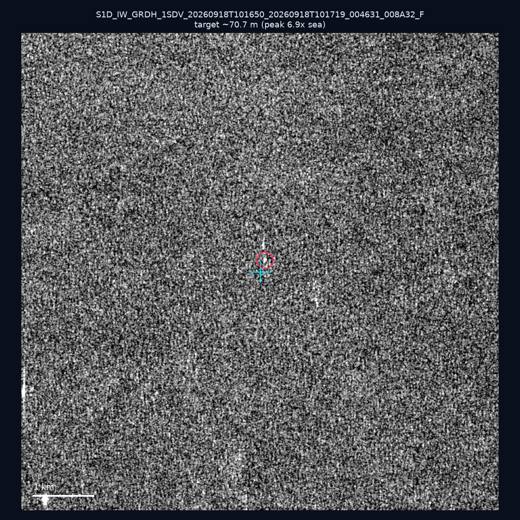

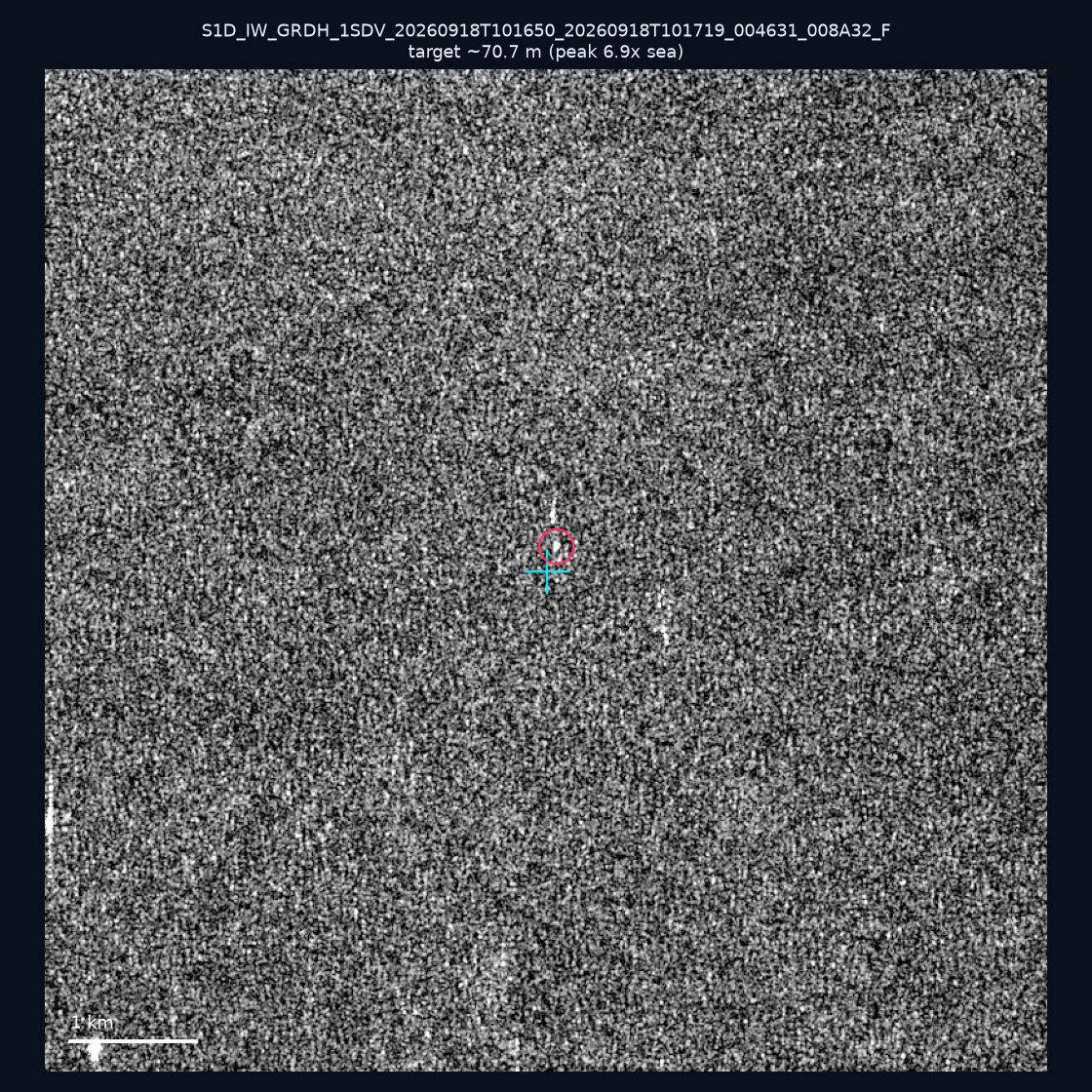

SAR chip 23.27, 117.13 — 🟡 弱目標Weak target
📅 2026-09-18 · 📍 23.27, 117.13 · 🛰️ 10:16 UTC · eez
~70.7 m · 6.9× (16 px)

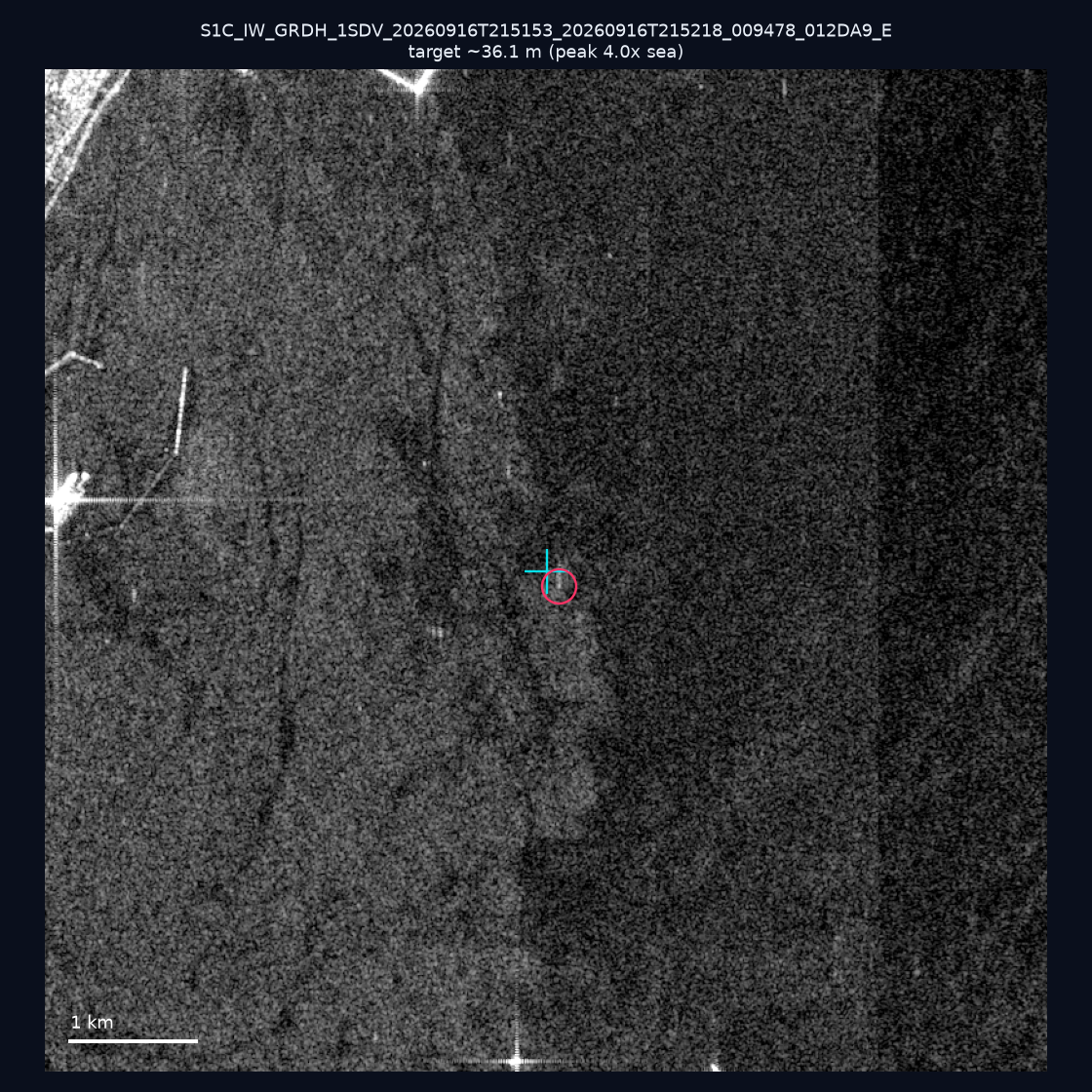

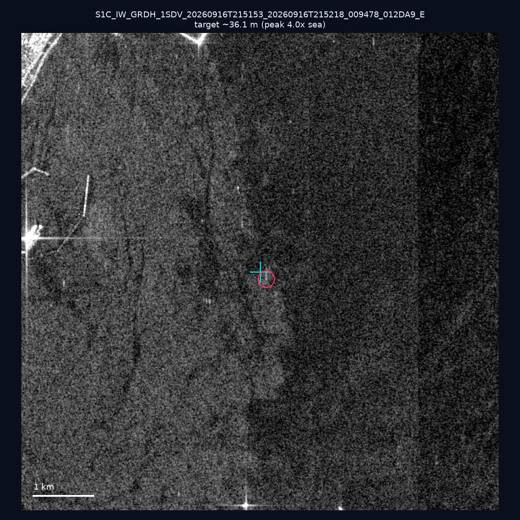

SAR chip 22.81, 120.16 — 🟡 弱目標Weak target
📅 2026-09-16 · 📍 22.81, 120.16 · 🛰️ 21:51 UTC · internal_waters
~36.1 m · 4.0× (4 px)

日期Date	座標Position	海域Area	法域Zone	成像時刻Acquired	判定Verdict	估計長度Length	峰值比Peak
2026-09-18	23.25, 118.39	southwest	eez	10:16	⚪ 無目標No target	—	—
2026-09-18	23.12, 118.13	southwest	eez	10:16	🟡 弱目標Weak target	~22.4 m	3.6×
2026-09-18	23.27, 117.13	southwest	eez	10:16	🟡 弱目標Weak target	~70.7 m	6.9×
2026-09-16	22.81, 120.16	southwest	internal_waters	21:51	🟡 弱目標Weak target	~36.1 m	4.0×
2026-09-16	24.73, 122.18	east	contiguous_zone	21:51	⚪ 無目標No target	—	—
2026-09-16	22.61, 119.51	southwest	contiguous_zone	21:51	🟡 弱目標Weak target	~771.6 m	9.2×
2026-09-16	22.59, 120.24	southwest	internal_waters	21:51	✅ 確認實體目標Confirmed target	~300.0 m	53.4×
2026-09-16	25.35, 122.18	east	territorial_sea	21:51	⚪ 無目標No target	—	—
2026-09-16	24.86, 122.07	east	territorial_sea	21:51	✅ 確認實體目標Confirmed target	~224.7 m	44.7×
2026-09-16	22.68, 120.19	southwest	internal_waters	21:51	✅ 確認實體目標Confirmed target	~134.5 m	13.9×

切片由 Sentinel-1 GRD 影像即時裁切（VV 極化、dB 尺度），判定為自動亮目標偵測結果，長度為粗估。點圖看全解析度原圖。Chips are cut from Sentinel-1 GRD imagery (VV, dB scale); verdicts come from automated bright-target detection and lengths are rough estimates. Click for the full-resolution image.

可疑船隻 Top 5Top 5 Suspicious Vessels

船舶Vessel	類型Type	分數Score	法域Zone	海纜Cable
YING HAI 59 412522610	cargo	35	internal_waters	within_10km
CCC 413000000	cargo	31	eez	—
XINGHAI95 412906383	cargo	28	eez	within_5km
CHERRY 168 667001298	tanker	27	contiguous_zone	within_5km
MMSI-667002605 667002605	tanker	26	eez	within_5km

資料來源與限制：AIS 可能因轉發延遲或船舶走暗而不完整；SAR 偵測代表雷達可見目標，不必然代表違法；可疑分數為風險排序，並非法律認定。本報告由公開資料自動產生。 Sources & limits: AIS may be incomplete due to relay delay or vessels going dark; a SAR detection is a radar-visible target, not proof of illegality; the suspicious score is a risk ranking, not a legal finding. This report is auto-generated from public data.

⬇ JSON · 所有報告All reports
